Call a service

Any service of any domain, with JSON data and placeholders.

Where
+ Add actionHome AssistantHome Assistant: call a service

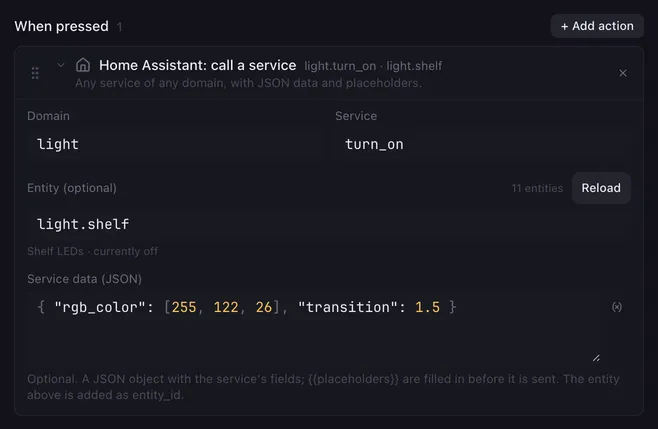

Home Assistant: call a service with Domain light, Service turn_on, Entity light.shelf and the service data { "rgb_color": [255, 122, 26], "transition": 1.5 }

Everything Home Assistant can do is a service: turn a light orange, run a script, activate a scene, send a notification to your phone. Call a service lets a pad do any of it. You write the domain, the service and its data; Lunchpad sends it.

Settings

Section titled “Settings”
Setting What it does
Domain The part of the service before the dot, for example light, scene or notify.
Service The service itself, for example turn_on. Together: light.turn_on.
Entity (optional) An entity to act on, with the same suggestions as the other actions. It is added to the data as entity_id. Leave it empty for services without an entity, or to set entity_id in the data yourself.
Service data (JSON) Optional. A JSON object with the service’s fields, for example { "rgb_color": [255, 122, 26] }. Empty sends no fields.

To find a service and its fields, open Developer tools in Home Assistant and go to the Actions tab. It lists every service with a description of each field, and can show the data as YAML, which translates directly into JSON.

How it runs

Section titled “How it runs”
  • {{placeholders}} work in every field. In the data they are filled in before the JSON is read, so write text placeholders in quotes ("message": "{{user}} is live") and numbers without ("brightness_pct": {{fader.desk}}).
  • The data must be a JSON object. If it is not valid JSON after the placeholders are filled in, nothing is sent and the reason goes to the log.
  • If Home Assistant refuses the call (unknown service, wrong field), its message goes to the log and shows as the status under Settings → Home Assistant. The macro goes on.

Examples

Section titled “Examples”
Goal Domain Service Entity Data
Shelf LEDs orange light turn_on light.shelf { "rgb_color": [255, 122, 26] }
Activate a scene scene turn_on scene.stream_start
Run a script script goodnight
Message to your phone notify mobile_app_your_phone { "message": "Stream is live" }
