HTTP request

Call a web address with any method, headers, body and login.

Where
+ Add actionSystemHTTP request
Wait
Has a Wait switch: on, the next action starts once this one is done

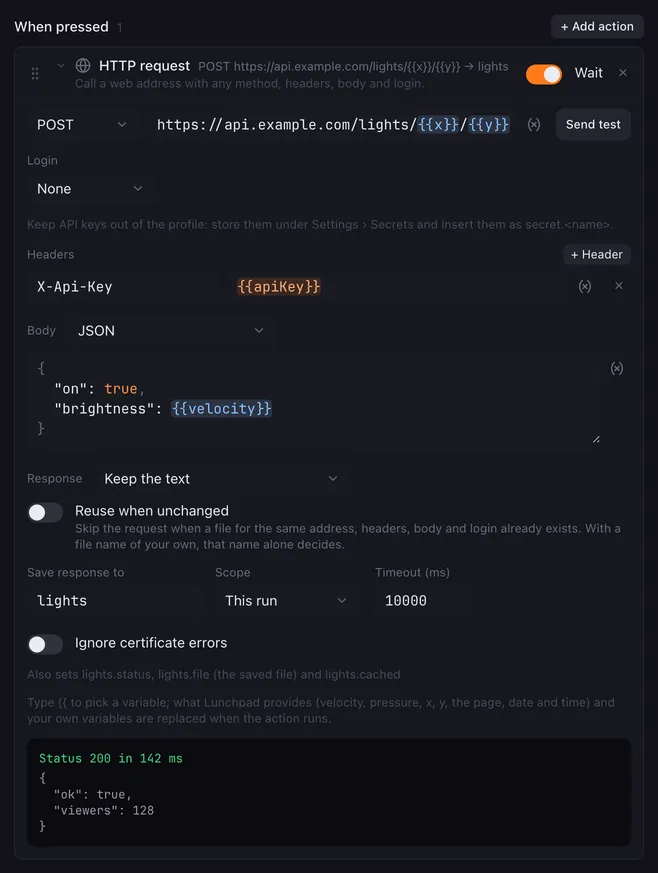

HTTP request: POST to https://api.example.com/lights/{{x}}/{{y}} with the header X-Api-Key {{apiKey}} and a JSON body containing {{velocity}}. The response is saved to the variable lights. Below, the Send test result reads Status 200 in 142 ms.

HTTP request calls a web address. Anything with a web API or webhook can be driven from a pad: smart lights, Home Assistant, Stream Deck-style web services, chat bots, Discord webhooks, your own server.

Settings

Section titled “Settings”
Setting What it does
Method GET, POST, PUT, PATCH, DELETE or HEAD.
URL The address to call.
Send test Sends the request now and shows the status, the time it took and the start of the answer.
Login None, Username and password (basic authentication) or Bearer token.
Headers Extra headers; add one with + Header.
Body What to send and how. Not shown for GET and HEAD, which send no body.
Save response to Stores the answer in this variable.
Scope This run or Everywhere, see variables.
Timeout (ms) How long to wait for an answer, 500 to 120000 ms. The default is 10000.
Ignore certificate errors Accepts self-signed or expired HTTPS certificates, for devices on your own network.

The Body kinds:

Kind Sends
JSON The text with Content-Type: application/json.
Form (urlencoded) The text with Content-Type: application/x-www-form-urlencoded.
Plain text The text with Content-Type: text/plain.
Custom content type The text with the content type you type.
Form with files multipart/form-data: one text field per name=value line, plus the files under Files (Field name, Path to the file).
File contents The bytes of one file. The content type is guessed from the file name unless you type one.
No content type The text without a content type header.

A text body that is empty is not sent at all.

How it runs

Section titled “How it runs”
  • {{placeholders}} work in the URL, header values, the body, the password, the bearer token, and the file paths and names. A placeholder with a name Lunchpad does not know is sent as typed.
  • With Wait on, the next action starts once the answer is in. Keep it on when the next actions use the saved response.
  • When the macro is stopped, a request that is still waiting is cancelled.
  • The saved variable holds the first 2 KB of the answer. A second variable, named like yours with .status added (lights.status for lights), holds the status code.
  • Error codes such as 404 or 500 are saved like any other answer and noted in the log. When there is no answer at all (no connection, timeout, bad address), the variable is emptied and the status is 0.
  • Lunchpad identifies itself as Lunchpad/ plus its version in the User-Agent header.

Example

Section titled “Example”

Only react when a smart-home call worked:

  1. HTTP request: POST http://homeassistant.local:8123/api/services/light/toggle with Bearer token and the JSON body { "entity_id": "light.desk" }, Save response to ha.
  2. Condition: ha.status equals 200.
  3. Inside the condition, Set colour to show the new state on the pad.
